ATB6000 SeriesMicro-Charge Particulate Matter Dynamic Detector

A revolutionary approach to dust monitoring

Breakthrough technology: high-speed sampling unifies AC and DC PicoAmp (pA) signals, and a heavy solids-flow model algorithm delivers outstanding accuracy.
Dynamic zero point and baseline tracking, velocity compensation algorithm, with no periodic zero-point calibration.
2.4" full-color LCD touchscreen, friendly English-Chinese user-interface, real-time display concentration (selectable pA, mg/m³, or g/m³), alarm, and sensor maintenance (fouling / bridging) indication.
Two-wire 24VDC power supply, independent 4~20mA output, and R485 communication.
Dynamic range span options: 1pA resolution with 1.0x10⁷pA full-scale range (standard), with 0.1pA or 0.01pA resolution (optional).
Multi-point automatic trend calibration for particle flow, which greatly improves the accuracy of measurement.
Dual alarm design with delay and fault modes.
RS485 and Type-C serial port communication, with customized PC engineering software, for easy operation.

Measuring response

As the next generation of intelligent, digital, dynamic particle monitoring devices, ATB6000 can fully support your plant and process needs to meet your two-phase solids flow measurements. It is widely used in fluid process control, process detection, monitoring of various dust collectors, open space, and limited space powder-related processes.

ATB6000 series dynamic micro-charge particulate detector includes proprietary core technology including the following:

Combines an ultra-high frequency DSP sampling front-end, providing measurement accuracy through high-speed capture and dynamic analysis of the micro charge (pA) signal.
Embedded fluid model algorithm and self-learning modular SOC back-end
Good adaptability and stability of modern intelligent instrumentation for various harsh industrial environments
Excellent electromagnetic compatibility, stable data monitoring, wide operating temperature range, and good repeatability.

ATB6000 series dynamic micro-charge particulate detector

High-frequency sampling / high-precision device can be customized according to the flow distribution and particulate characteristics of the process measuring points.

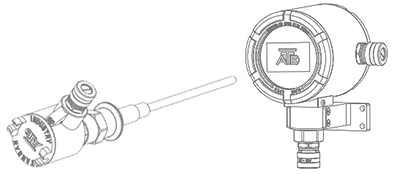

High-performance integral or remote sensor (composed of a remote electronics processing unit and a separate probe) allows for a variety of measurement options for different applications.
Intrinsically safe equipment applied with safety protection level of application.

Reduce your installation, operation, and maintenance costs with proven technology.

Specifications for ATB6000 Series Electronic

Protection Class	IP67 NEMA 6
Power Supply	Two-wire / 24VDC
Ambient Temperature	-4°F~158°F (-20°C ~ 70°C)
User-interface	2.4” LCD touch screen
Certifications	CPA Approved, CENB Approved
Output Digital Communication	4~20mA analog output RS485 communication, Type-C communication transmission
Rated Power	1500mW
Humidity Range	0 ~ 95% relative non-condensing
Resolution	1pA Standard 0.1 pA and 0.01pA optional
Full Range	1.0x 10⁷ pA 1.0 x 10⁹ pA (optional)
Unit Features	Password to prevent changes, standard pA units or mass concentration mg/m³, g/m³
Self-checking	Zero-point self-checking Range span self-check Drift self-check Trouble shooting
